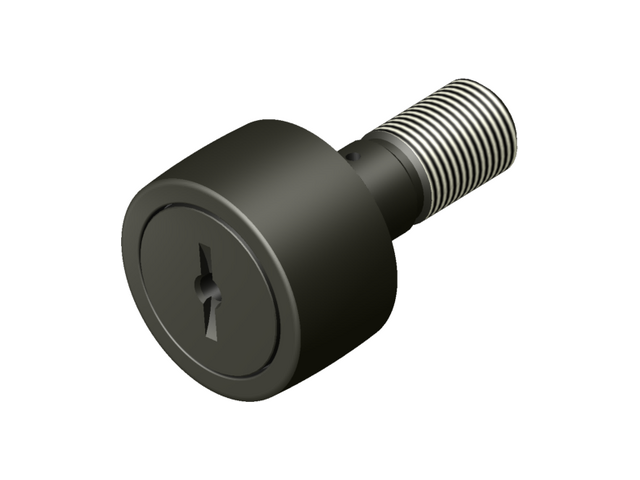

CCNB -Standard Crowned Slotted Unsealed Cam Follower

PDF Download

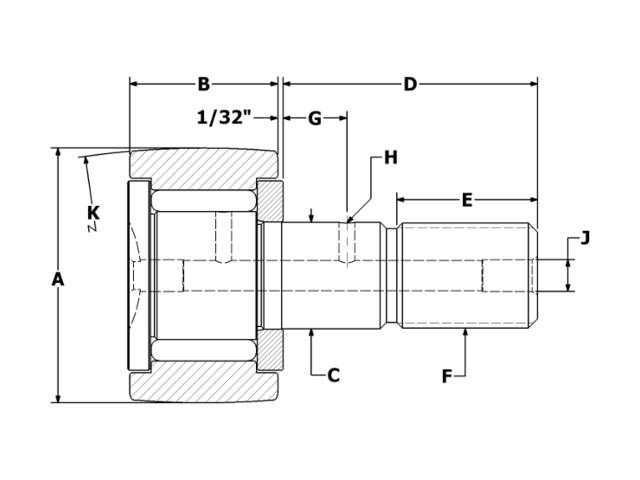

CCNB-48 2D CAD Drawing


Roller O.D. A 1.500
Roller Width B 0.875
Crown Radius K 20
Stud Diameter C 0.625
Stud Length D 1.500
M.E.T. E 3/4
Thread Class 2A F 5/8-18
Oil Hole Center G 3/8
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Min. Boss Diameter 57/64
Mounting Bore Diameter (recommended) 0.625
**Recom. Torque Inch Pounds 325
Max Static Capacity (lbf) 5,640
Basic Dynamic Rating (lbf) 4,840
Limiting Speed (RPM) 2,500

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
