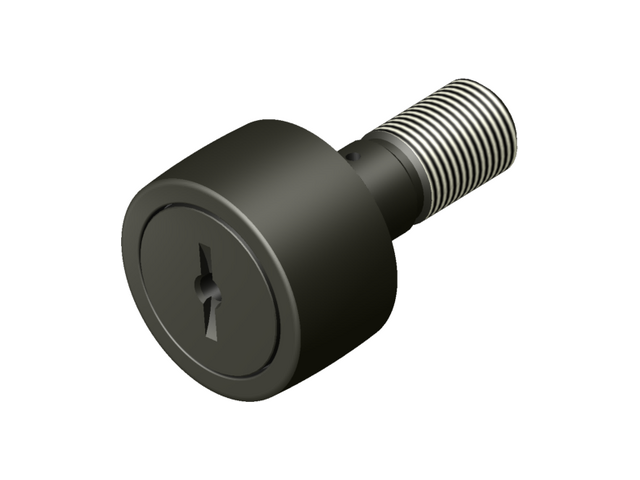

CCNB -Standard Crowned Slotted Unsealed Cam Follower

PDF Download

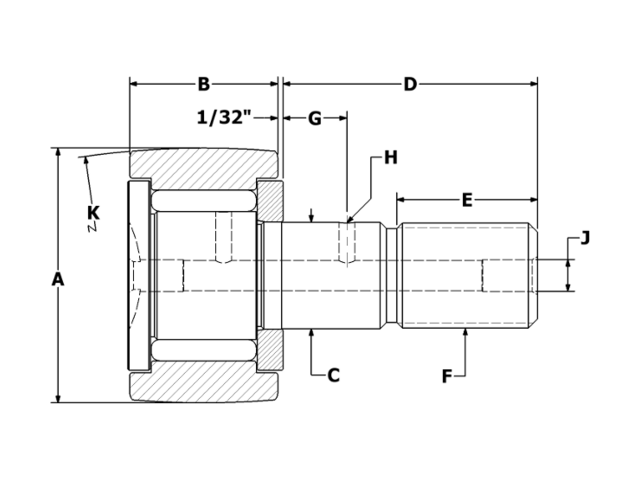

CCNB-32 2D CAD Drawing


Roller O.D. A 1.000
Roller Width B 0.625
Crown Radius K 12
Stud Diameter C 0.4375
Stud Length D 1.000
M.E.T. E 1/2
Thread Class 2A F 7/16-20
Oil Hole Center G 1/4
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Min. Boss Diameter 41/64
Mounting Bore Diameter (recommended) 0.438
**Recom. Torque Inch Pounds 125
Max Static Capacity (lbf) 3,060
Basic Dynamic Rating (lbf) 2,225
Limiting Speed (RPM) 4,800

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
