CCNB-SB -Standard Crowned Hexed Sealed Cam Follower

PDF Download

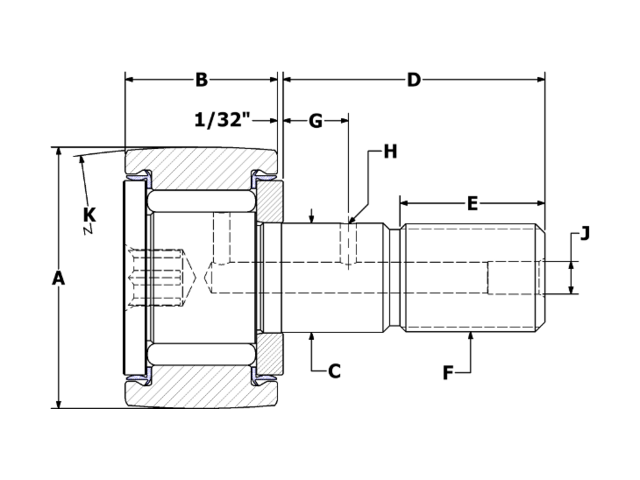

CCNB-288-SB 2D CAD Drawing


Roller O.D. A 9.000
Roller Width B 4.750
Crown Radius K 40
Stud Diameter C 3.750
Stud Length D 9.500
M.E.T. E 4 3/4
Thread Class 2A F 3 1/2-4
Oil Hole Center G ~
Oil Hole Diameter H ~
Lube Fitting Size J 1/4 N.P.T.
Min. Boss Diameter 5 7/16
Mounting Bore Diameter (recommended) 3.750
**Recom. Torque Inch Pounds 2500
Max Static Capacity (lbf) 183,430
Basic Dynamic Rating (lbf) 113,260
Limiting Speed (RPM) 300

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
