CCNB-SB -Standard Crowned Hexed Sealed Cam Follower

PDF Download

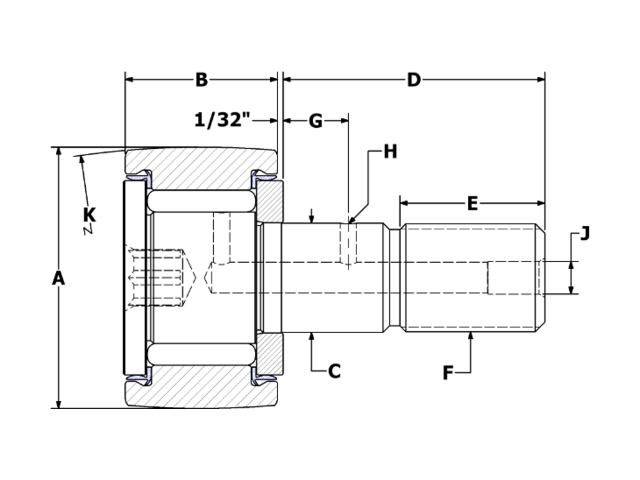

CCNB-224-SB 2D CAD Drawing


Roller O.D. A 7.000
Roller Width B 3.750
Crown Radius K 60
Stud Diameter C 3.000
Stud Length D 7.687
M.E.T. E 4 1/8
Thread Class 2A F 3-12
Oil Hole Center G 1 1/4
Oil Hole Diameter H 3/16
Lube Fitting Size J 1/4 N.P.T.
Min. Boss Diameter 3 7/8
Mounting Bore Diameter (recommended) 3.000
**Recom. Torque Inch Pounds 2500
Max Static Capacity (lbf) 106,930
Basic Dynamic Rating (lbf) 75,380
Limiting Speed (RPM) 400

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
