CCNB-20-NB

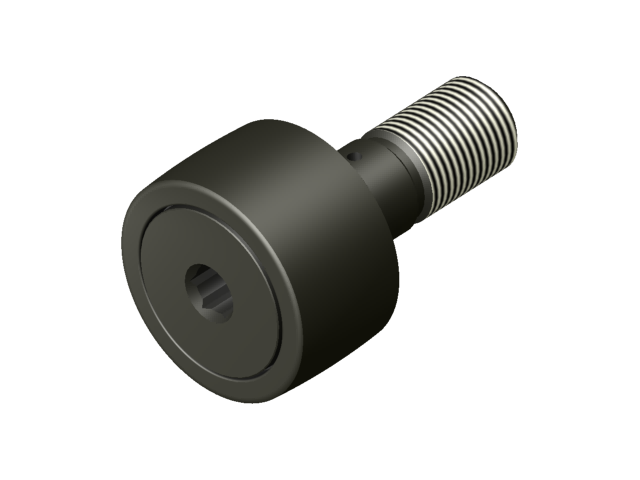

CCNB-B -Standard Crowned Hexed Unsealed Cam Follower

PDF Download

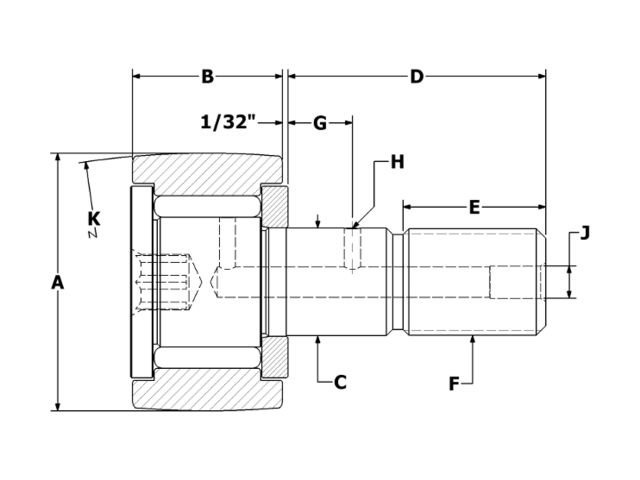

CCNB-20-NB 2D CAD Drawing

Specifications

ID CCNB-20-NB
Roller O.D. A 0.625
Roller Width B 0.406
Crown Radius K 8
Stud Diameter C 0.250
Stud Length D 0.625
M.E.T. E 5/16
Thread Class 2A F 1/4-28
Oil Hole Center G ~
Oil Hole Diameter H ~
Lube Fitting Size J ~
Min. Boss Diameter 23/64
Mounting Bore Diameter (recommended) 0.250
**Recom. Torque Inch Pounds 17.5
Max Static Capacity (lbf) 1,215
Basic Dynamic Rating (lbf) 995
Limiting Speed (RPM) 9,200

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
