CCNB-16-B

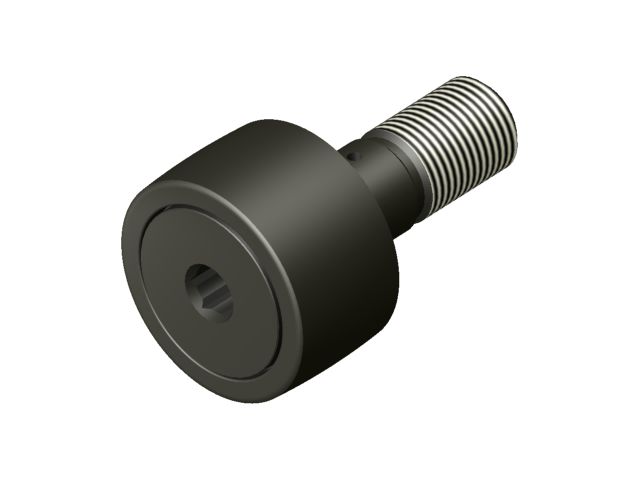

CCNB-B -Standard Crowned Hexed Unsealed Cam Follower

Please call 616-842-8760 for price and availability

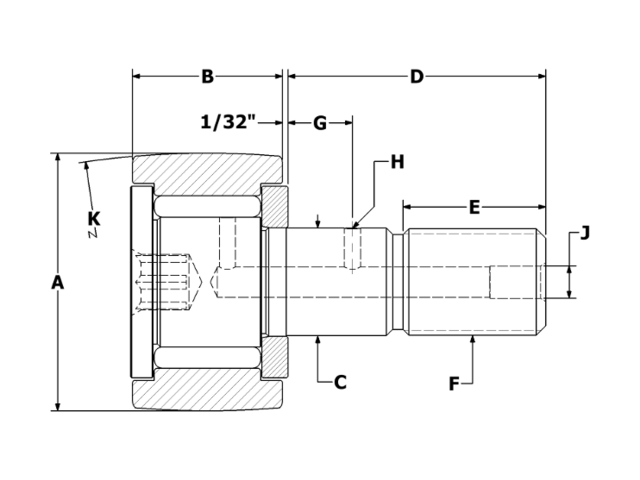

Specifications

ID CCNB-16-B
Roller O.D. A 0.500
Roller Width B 0.375
Crown Radius K 7
Stud Diameter C 0.190
Stud Length D 0.625
M.E.T. E 1/4
Thread Class 2A F 10-32
Oil Hole Center G ~
Oil Hole Diameter H ~
Lube Fitting Size J ~
Min. Boss Diameter 19/64
Mounting Bore Diameter (recommended) 0.190
**Recom. Torque Inch Pounds 15
Max Static Capacity (lbf) 1,085
Basic Dynamic Rating (lbf) 930

Downloads

CCNB-16-B STP File

CCNB-16-B IGES File

CCNB-16-B PDF File

3D View
