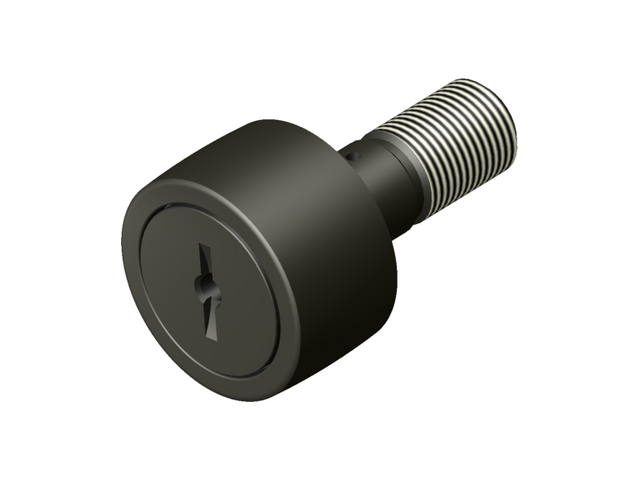

CCNB -Standard Crowned Slotted Unsealed Cam Follower

PDF Download

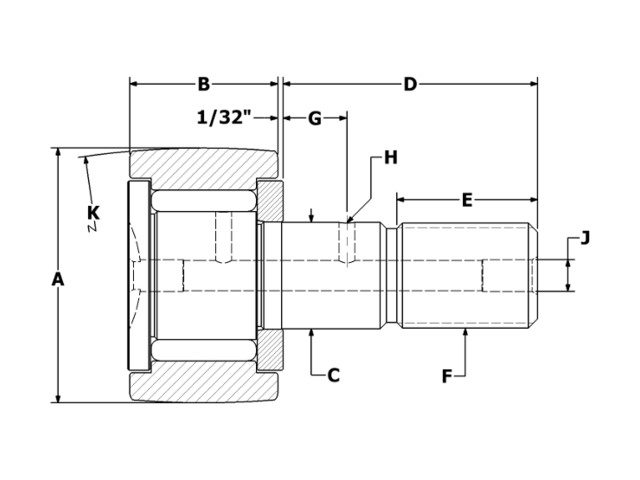

CCNB-16 2D CAD Drawing


Roller O.D. A 0.500
Roller Width B 0.375
Crown Radius K 7
Stud Diameter C 0.190
Stud Length D 0.625
M.E.T. E 1/4
Thread Class 2A F 10-32
Oil Hole Center G ~
Oil Hole Diameter H ~
Lube Fitting Size J 1/8
Min. Boss Diameter 19/64
Mounting Bore Diameter (recommended) 0.190
**Recom. Torque Inch Pounds 7.5
Max Static Capacity (lbf) 1,085
Basic Dynamic Rating (lbf) 930
Limiting Speed (RPM) 11,500

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
