CCNB-128

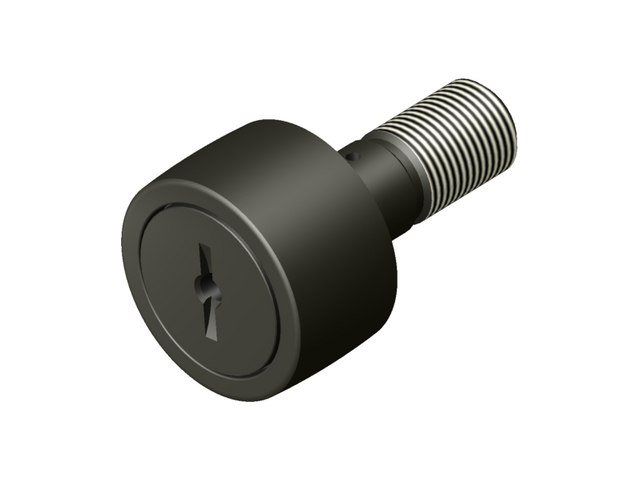

CCNB -Standard Crowned Slotted Unsealed Cam Follower

Please call 616-842-8760 for price and availability

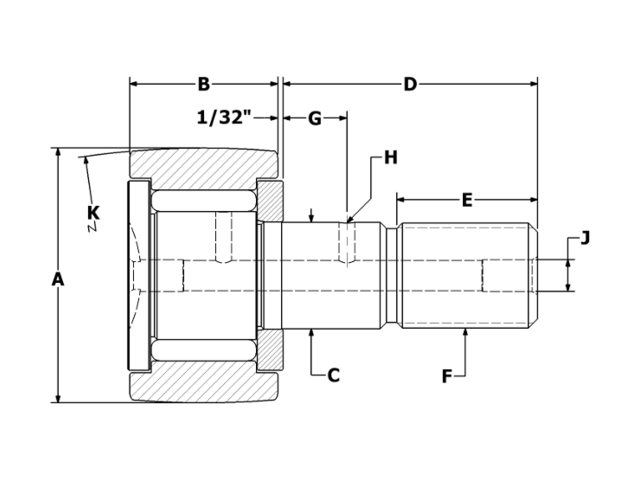

Specifications

ID CCNB-128
Roller O.D. A 4.000
Roller Width B 2.250
Crown Radius K 30
Stud Diameter C 1.500
Stud Length D 3.500
M.E.T. E 1 1/2
Thread Class 2A F 1 1/2-12
Oil Hole Center G 3/4
Oil Hole Diameter H 1/8
Lube Fitting Size J 1/4
Min. Boss Diameter 2 9/32
Mounting Bore Diameter (recommended) 1.500
**Recom. Torque Inch Pounds 5,000
Max Static Capacity (lbf) 44,770
Basic Dynamic Rating (lbf) 29,985
