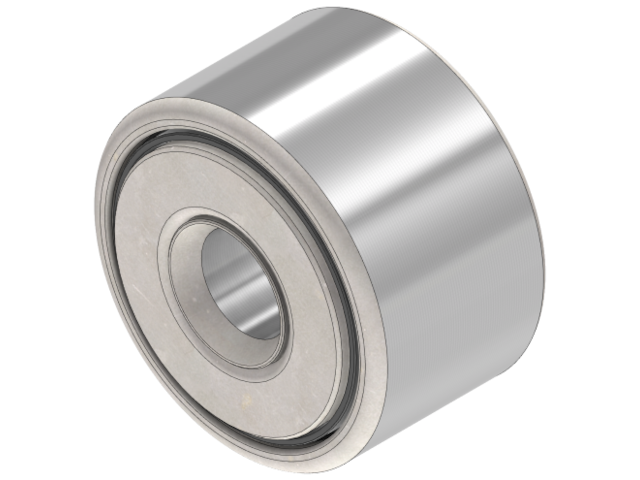

XDY-S -XD Cylindrical Sealed Yoke Roller

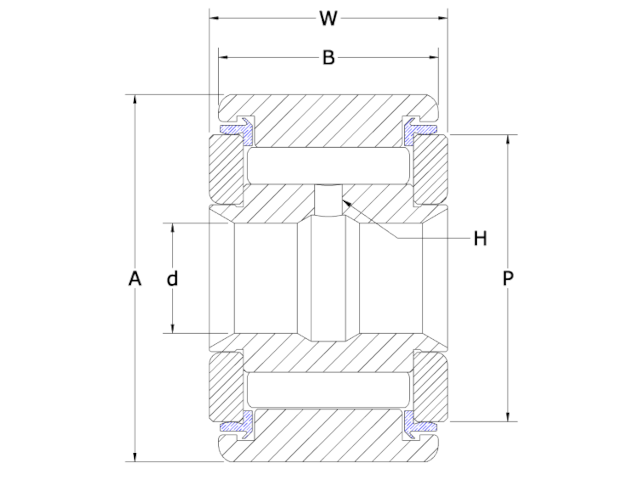

ID	Roller O.D.	Roller Width	Bore Diameter	Overall Width	Oil Hole Diameter	Min. Boss Diameter
	A	B	d	W	H	P
XDY-24-S	0.750	0.500	0.250	0.5625	3/32	1/2
XDY-32-S	1.000	0.625	0.313	0.6875	3/32	41/64
XDY-40-S	1.250	0.750	0.375	0.8125	3/32	49/64
