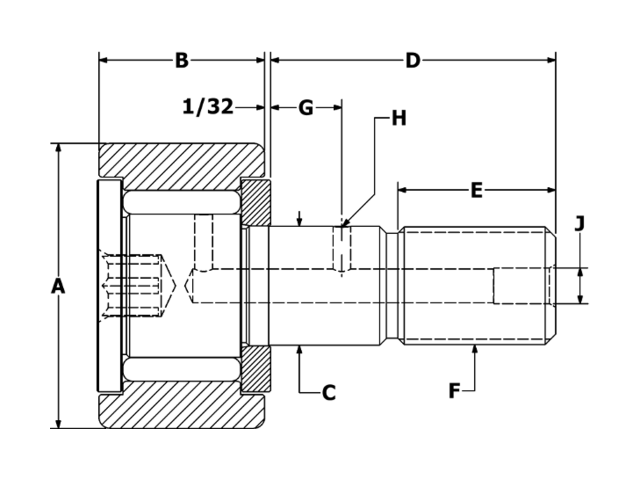

CNB-B -Standard Hexed Unsealed Cam Follower

ID	Roller O.D.	Roller Width	Stud Diameter	Stud Length	M.E.T.	Thread Class 2A	Oil Hole Center	Oil Hole Diameter	Lube Fitting Size	Hex Size
	A	B	C	D	E	F	G	H	J	X
CNB-16-NB	0.500	0.344	0.190	0.500	1/4	10-32	~	~	~	1/8
CNB-16-B	0.500	0.375	0.190	0.625	1/4	10-32	~	~	~	1/8
CNB-20-NB	0.625	0.406	0.250	0.625	5/16	1/4-28	~	~	~	1/8
CNB-20-B	0.625	0.4375	0.250	0.750	5/16	1/4-28	~	~	~	1/8
CNB-22-B	0.688	0.4375	0.250	0.750	5/16	1/4-28	~	~	~	1/8
CNB-24-B	0.750	0.500	0.375	0.875	3/8	3/8-24	1/4	3/32	3/16	3/16
CNB-28-B	0.875	0.500	0.375	0.875	3/8	3/8-24	1/4	3/32	3/16	3/16
CNB-32-B	1.000	0.625	0.4375	1.000	1/2	7/16-20	1/4	3/32	3/16	1/4
CNB-36-B	1.125	0.625	0.4375	1.000	1/2	7/16-20	1/4	3/32	3/16	1/4
CNB-40-B	1.250	0.750	0.500	1.250	5/8	1/2-20	5/16	3/32	3/16	1/4
CNB-44-B	1.375	0.750	0.500	1.250	5/8	1/2-20	5/16	3/32	3/16	1/4
CNB-48-B	1.500	0.875	0.625	1.500	3/4	5/8-18	3/8	3/32	3/16	5/16
CNB-52-B	1.625	0.875	0.625	1.500	3/4	5/8-18	3/8	3/32	3/16	5/16
CNB-56-B	1.750	1.000	0.750	1.750	7/8	3/4-16	7/16	3/32	3/16	5/16
CNB-60-B	1.875	1.000	0.750	1.750	7/8	3/4-16	7/16	3/32	3/16	5/16
CNB-64-B	2.000	1.250	0.875	2.000	1	7/8-14	1/2	1/8	3/16	7/16
CNB-72-B	2.250	1.250	0.875	2.000	1	7/8-14	1/2	1/8	3/16	7/16
CNB-80-B	2.500	1.500	1.000	2.250	1 1/8	1-14	9/16	1/8	3/16	1/2
CNB-88-B	2.750	1.500	1.000	2.250	1 1/8	1-14	9/16	1/8	3/16	1/2
CNB-96-B	3.000	1.750	1.250	2.500	1 1/4	1 1/4-12	5/8	1/8	1/4	3/4
CNB-104-B	3.250	1.750	1.250	2.500	1 1/4	1 1/4-12	5/8	1/8	1/4	3/4
CNB-112-B	3.500	2.000	1.375	2.750	1 3/8	1 3/8-12	11/16	1/8	1/4	3/4
CNB-128-B	4.000	2.250	1.500	3.500	1 1/2	1 1/2-12	3/4	1/8	1/4	3/4
