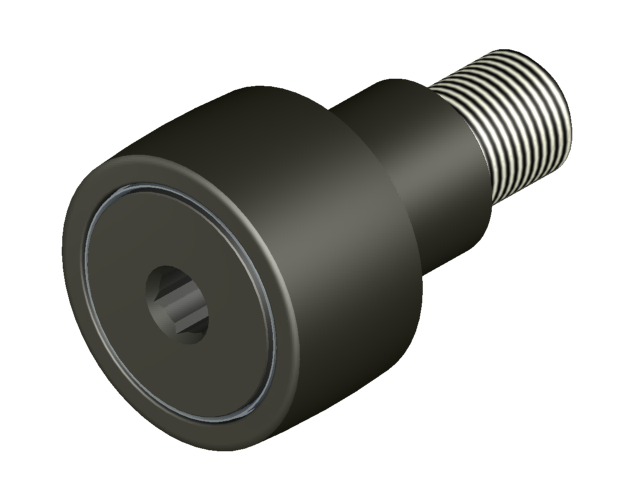

CCNBE-SB -Standard Crowned Hexed Eccentric Sealed Cam Follower

ID	Roller O.D.	Roller Width	Crown Radius	Stud Length	M.E.T.	Thread Class 2A	Oil Hole Center	Oil Hole Diameter	Lube Fitting Size	Bushing Length
	A	B	K	D	E	F	G	H	J	L
CCNBE-16-NSB	0.500	0.344	7	0.500	1/4	10-32	~	~	~	0.250
CCNBE-16-SB	0.500	0.375	7	0.625	1/4	10-32	~	~	~	0.375
CCNBE-20-NSB	0.625	0.406	8	0.625	5/16	1/4-28	~	~	~	0.313
CCNBE-20-SB	0.625	0.4375	8	0.750	5/16	1/4-28	~	~	~	0.437
CCNBE-22-SB	0.688	0.4375	8	0.750	5/16	1/4-28	~	~	~	0.437
CCNBE-24-SB	0.750	0.500	10	0.875	3/8	3/8-24	1/4	3/32	3/16	0.500
CCNBE-28-SB	0.875	0.500	10	0.875	3/8	3/8-24	1/4	3/32	3/16	0.500
CCNBE-32-SB	1.000	0.625	12	1.000	1/2	7/16-20	1/4	3/32	3/16	0.500
CCNBE-36-SB	1.125	0.625	12	1.000	1/2	7/16-20	1/4	3/32	3/16	0.500
CCNBE-40-SB	1.250	0.750	14	1.250	5/8	1/2-20	5/16	3/32	3/16	0.625
CCNBE-44-SB	1.375	0.750	14	1.250	5/8	1/2-20	5/16	3/32	3/16	0.625
CCNBE-48-SB	1.500	0.875	20	1.500	3/4	5/8-18	3/8	3/32	3/16	0.750
CCNBE-52-SB	1.625	0.875	20	1.500	3/4	5/8-18	3/8	3/32	3/16	0.750
CCNBE-56-SB	1.750	1.000	20	1.750	7/8	3/4-16	7/16	3/32	3/16	0.875
CCNBE-60-SB	1.875	1.000	20	1.750	7/8	3/4-16	7/16	3/32	3/16	0.875
CCNBE-64-SB	2.000	1.250	24	2.000	1	7/8-14	1/2	1/8	3/16	1.000
CCNBE-72-SB	2.250	1.250	24	2.000	1	7/8-14	1/2	1/8	3/16	1.000
CCNBE-80-SB	2.500	1.500	30	2.250	1 1/8	1-14	9/16	1/8	3/16	1.125
CCNBE-88-SB	2.750	1.500	30	2.250	1 1/8	1-14	9/16	1/8	3/16	1.125
CCNBE-96-SB	3.000	1.750	30	2.500	1 1/4	1 1/4-12	5/8	1/8	1/4	1.250
CCNBE-104-SB	3.250	1.750	30	2.500	1 1/4	1 1/4-12	5/8	1/8	1/4	1.250
CCNBE-112-SB	3.500	2.000	30	2.750	1 3/8	1 3/8-12	11/16	1/8	1/4	1.375
CCNBE-128-SB	4.000	2.250	30	3.500	1 1/2	1 1/2-12	3/4	1/8	1/4	2.000
