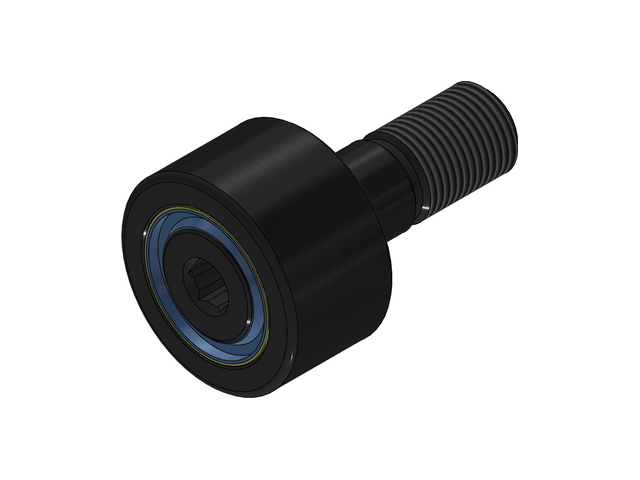

CCDR-S -Crowned Heavy Cylindrical Roller Bearings, Cam Follower

ID	Roller O.D.	Roller Width	Crown Radius	Stud Diameter	Stud Length	M.E.T.	Thread Class 2A	Shoulder Diameter	Hex Size
	A	B	K	C	D	E	F	G	X
CCDR-150-S	1.500	0.875	20	0.625	1.500	3/4	5/8-18	3/4	5/16
CCDR-175-S	1.750	1.000	20	0.750	1.750	7/8	3/4-16	1	5/16
CCDR-200-S	2.000	1.250	24	0.875	2.000	1	7/8-14	1-1/8	7/16
CCDR-250-S	2.500	1.500	30	1.000	2.250	1 1/8	1-14	1-1/4	1/2
CCDR-400-S	4.000	2.250	30	1.500	3.500	1 1/2	1 1/2-14	2-1/2	3/4
